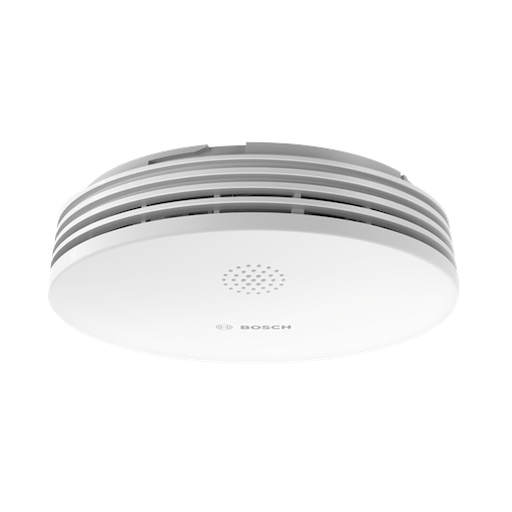

Bosch BSD-2


Model	BSD-2
Vendor	Bosch
Description	Smoke alarm II
Exposes	smoke, smoke_alarm_silenced, button_pushed, manual_smoke_alarm, manual_burglar_alarm, broadcast_alarms, test_mode, test_mode_timeout, battery, battery_low

Notes

Pairing

Before starting the pairing process the device's install code needs to be added to Zigbee2MQTT. Scan the QR code printed on the bottom of the device with the camera of your mobile phone and copy the received value (Attention: The install code printed in plain text on the device is not sufficient!)
The install code can be found inside the device before attaching it to the mounting plate
Add this install code under Settings -> Tools -> Add install code

To factory reset the device remove the battery and wait 20 seconds or briefly press the device's main button. While pressing and holding the device's main button, insert the battery back. As soon as the device's LED on the front is starting to blink red, release the device's main button and press and hold it again until the device beeps. The device will reboot, which can take up to a minute. Watch on Youtube

Exposes

Smoke (binary)

Indicates whether the device detected smoke. Value can be found in the published state on the smoke property. It's not possible to read (/get) or write (/set) this value. If value equals true smoke is ON, if false OFF.

Smoke alarm silenced (binary)

Indicates whether an smoke alarm was silenced on the device itself for 10 minutes. Please keep in mind that the smoke detection is being disabled during that time period as well.. Value can be found in the published state on the smoke_alarm_silenced property. It's not possible to read (/get) or write (/set) this value. If value equals true smoke alarm silenced is ON, if false OFF.

Button pushed (binary)

Indicates whether the button on the device is being pushed for at least 3 seconds (e.g., to trigger a test alarm or silence a smoke alarm). Value can be found in the published state on the button_pushed property. It's not possible to read (/get) or write (/set) this value. If value equals true button pushed is ON, if false OFF.

Manual smoke alarm (binary)

Indicates whether the smoke alarm siren is being manually activated on the device. Value can be found in the published state on the manual_smoke_alarm property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"manual_smoke_alarm": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"manual_smoke_alarm": NEW_VALUE}. If value equals ON manual smoke alarm is ON, if OFF OFF.

Manual burglar alarm (binary)

Indicates whether the burglar alarm siren is being manually activated on the device. Value can be found in the published state on the manual_burglar_alarm property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"manual_burglar_alarm": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"manual_burglar_alarm": NEW_VALUE}. If value equals ON manual burglar alarm is ON, if OFF OFF.

Broadcast alarms (binary)

Broadcast manual alarm state changes to all BSD-2 devices on the network. Please keep in mind that a detected smoke alarm is not being transmitted automatically to other devices. To achieve that, you must set up an automation, e.g., in Home Assistant.. Value can be found in the published state on the broadcast_alarms property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"broadcast_alarms": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"broadcast_alarms": NEW_VALUE}. If value equals ON broadcast alarms is ON, if OFF OFF.

Test mode (binary)

Check the function of the smoke alarm. Pay attention to the alarm sound and the flashing of the alarm LED. Please keep in mind that it can take up to 10 seconds for the test mode to be activated.. Value can be found in the published state on the test_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"test_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"test_mode": NEW_VALUE}. If value equals ON test mode is ON, if OFF OFF.

Test mode timeout (numeric)

Determines how long the test mode should be activated. The default length is 5 seconds.. Value can be found in the published state on the test_mode_timeout property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"test_mode_timeout": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"test_mode_timeout": NEW_VALUE}. The minimal value is 1 and the maximum value is 255. The unit of this value is seconds.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Battery low (binary)

Empty battery indicator. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.
