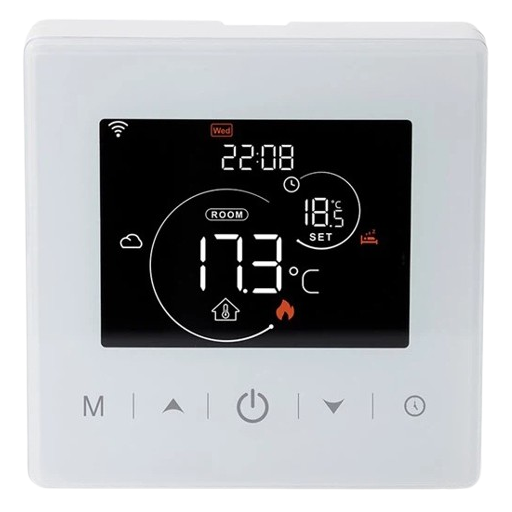

Beok BOT-R9V-ZB

Model	BOT-R9V-ZB
Vendor	Beok
Description	Wall-mount thermostat
Exposes	climate (current_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, running_state, preset), child_lock, battery, valve_state, frost, deadzone_temperature, min_temperature_limit, max_temperature_limit, eco_temperature, schedule_monday, schedule_tuesday, schedule_wednesday, schedule_thursday, schedule_friday, schedule_saturday, schedule_sunday

Exposes

Climate

This climate device supports the following features: current_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, running_state, preset.

• current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 5 and 60. Reading (/get) this attribute is not possible.
• local_temperature: Current temperature measured on the device (in °C). Reading (/get) this attribute is not possible.
• system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat. Reading (/get) this attribute is not possible.
• preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: auto, manual, eco. Reading (/get) this attribute is not possible.
• running_state: The current running state. Possible values are: idle, heat. Reading (/get) this attribute is not possible.
• local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.The minimal value is -9.9 and the maximum value is 9.9 with a step size of 0.1.

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Valve state (enum)

Valve state (open/close). Value can be found in the published state on the valve_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: open, close.

Frost (binary)

Frost protection mode. Value can be found in the published state on the frost property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"frost": NEW_VALUE}. If value equals ON frost is ON, if OFF OFF.

Deadzone temperature (numeric)

Temperature deadzone (hysteresis). Value can be found in the published state on the deadzone_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"deadzone_temperature": NEW_VALUE}. The minimal value is 0 and the maximum value is 5. The unit of this value is °C.

Min temperature limit (numeric)

Minimum temperature limit. Value can be found in the published state on the min_temperature_limit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_temperature_limit": NEW_VALUE}. The minimal value is 5 and the maximum value is 30. The unit of this value is °C.

Max temperature limit (numeric)

Maximum temperature limit. Value can be found in the published state on the max_temperature_limit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_temperature_limit": NEW_VALUE}. The minimal value is 15 and the maximum value is 60. The unit of this value is °C.

Eco temperature (numeric)

Eco mode temperature. Value can be found in the published state on the eco_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"eco_temperature": NEW_VALUE}. The minimal value is 5 and the maximum value is 30. The unit of this value is °C.

Schedule monday (text)

Schedule for monday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_monday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_monday": NEW_VALUE}.

Schedule tuesday (text)

Schedule for tuesday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_tuesday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_tuesday": NEW_VALUE}.

Schedule wednesday (text)

Schedule for wednesday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_wednesday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_wednesday": NEW_VALUE}.

Schedule thursday (text)

Schedule for thursday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_thursday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_thursday": NEW_VALUE}.

Schedule friday (text)

Schedule for friday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_friday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_friday": NEW_VALUE}.

Schedule saturday (text)

Schedule for saturday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_saturday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_saturday": NEW_VALUE}.

Schedule sunday (text)

Schedule for sunday, example: "HH:MM/C HH:MM/C HH:MM/C HH:MM/C". Value can be found in the published state on the schedule_sunday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_sunday": NEW_VALUE}.
