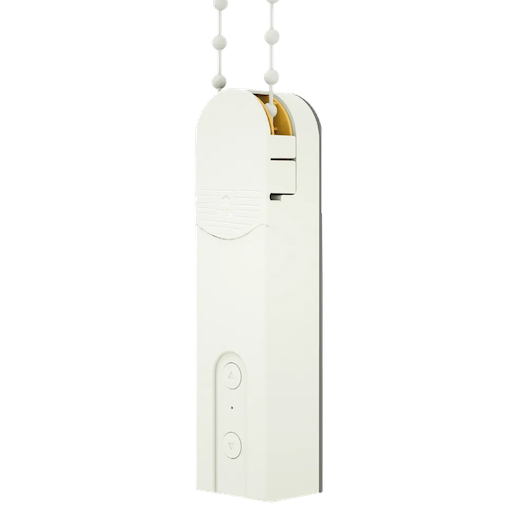

Moes AM43-0.45/40-ES-EB

Model	AM43-0.45/40-ES-EB
Vendor	Moes
Description	Roller blind/shades drive motor
Exposes	cover (state, position), motor_direction, motor_speed, opening_mode, set_upper_limit, set_bottom_limit, factory_reset, linkquality

Exposes

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.

Motor direction (enum)

Set the motor direction. Value can be found in the published state on the motor_direction property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_direction": NEW_VALUE}. The possible values are: normal, reversed.

Motor speed (numeric)

Motor speed. Value can be found in the published state on the motor_speed property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motor_speed": NEW_VALUE}. The minimal value is 0 and the maximum value is 255. The unit of this value is rpm.

Opening mode (enum)

Opening mode. Value can be found in the published state on the opening_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"opening_mode": NEW_VALUE}. The possible values are: tilt, lift.

Set upper limit (enum)

Set the upper limit, to reset limits use factory_reset. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"set_upper_limit": NEW_VALUE}. The possible values are: SET.

Set bottom limit (enum)

Set the bottom limit, to reset limits use factory_reset. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"set_bottom_limit": NEW_VALUE}. The possible values are: SET.

Factory reset (binary)

Factory reset the device. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"factory_reset": NEW_VALUE}. If value equals true factory reset is ON, if false OFF.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
