L&S Lighting 756200643

Model756200643
VendorL&S Lighting
DescriptionZigbee remote
Exposesbattery, action_group, action

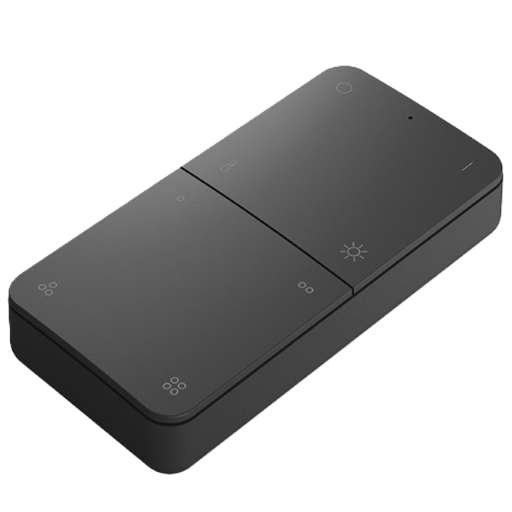

PictureL&S Lighting 756200643

Options

How to use device type specific configuration

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:
simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action group (numeric)

Group where the action was triggered on. Value can be found in the published state on the action_group property. It's not possible to read (/get) or write (/set) this value.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on_double, off_double, on, off, brightness_step_up, brightness_step_down, brightness_stop, color_temperature_step_up, color_temperature_step_down, stop_move_step.
