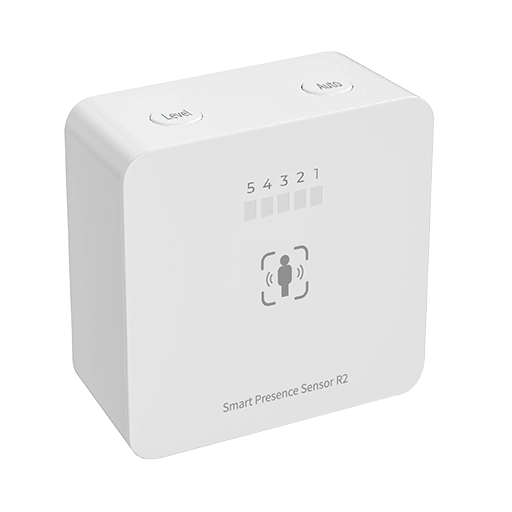

Third Reality 3RPS01083Z

Model	3RPS01083Z
Vendor	Third Reality
Description	Smart presence sensor R2
Exposes	battery, occupancy, sensor_calibation, sensor_sensitivity

OTA updates

This device supports OTA updates, for more information see OTA updates.

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Occupancy (binary)

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. It's not possible to read (/get) or write (/set) this value. If value equals true occupancy is ON, if false OFF.

Sensor calibation (binary)

sensor calibationit. Value can be found in the published state on the sensor_calibation property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensor_calibation": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor_calibation": NEW_VALUE}. If value equals ON sensor calibation is ON, if OFF OFF.

Sensor sensitivity (numeric)

sensor sensitive. Value can be found in the published state on the sensor_sensitivity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensor_sensitivity": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor_sensitivity": NEW_VALUE}. The minimal value is 1 and the maximum value is 5.
