SOMFY 1871154

Model1871154
VendorSOMFY
DescriptionYsia 5 channel blinds remote
Exposesbattery, action

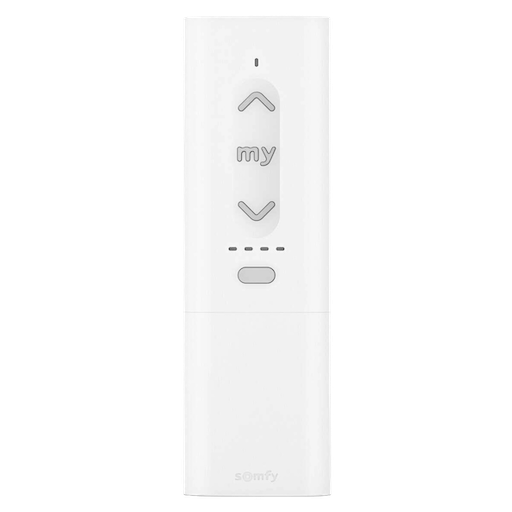

PictureSOMFY 1871154

Pairing

In order to put this remote controller in pairing mode, the reset button at the back of the controller must be hold for approximately 8 seconds until the light blink in red twice.

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on_1, on_2, on_3, on_4, on_5, off_1, off_2, off_3, off_4, off_5, toggle_1, toggle_2, toggle_3, toggle_4, toggle_5, open_1, open_2, open_3, open_4, open_5, close_1, close_2, close_3, close_4, close_5, stop_1, stop_2, stop_3, stop_4, stop_5.
