SOMFY 1245602

Model1245602
VendorSOMFY
DescriptionTilt and lift blinds motor
Exposescover (state, position, tilt), battery, identify

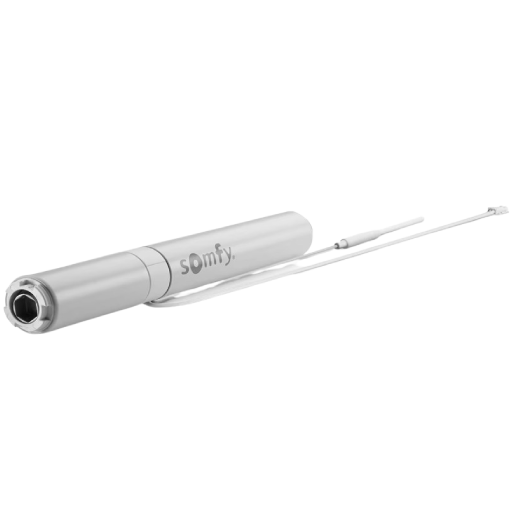

PictureSOMFY 1245602

Notes

Pairing

Press and hold the programming button until the motor jogs twice.

Options

How to use device type specific configuration

  • invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

  • cover_position_tilt_disable_report: Do not publish set cover target position as a normal 'position' value (default false). The value must be true or false

  • identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a maximum value of 30

Exposes

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100. To change the tilt publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"tilt": VALUE} where VALUE is a number between 0 and 100.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.
