Immax 07767L

Model07767L
VendorImmax
DescriptionNEO Smart outdoor button
Exposesbattery, action

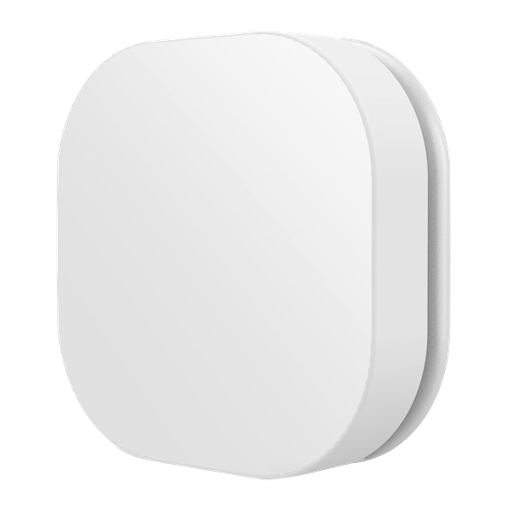

PictureImmax 07767L

Notes

Button has 2 modes, one as light controller and second as button. You can switch modes with triple click. Only button mode is supported.

Sold under "NEO Smart outdoor button".

Exposes

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: single, double, hold.
