Immax 07505L
Model | 07505L |
Vendor | Immax |
Description | Neo smart keypad |
Exposes | action, battery, tamper, admin_code, last_added_user_code, arm_delay_time, beep_sound_enabled, quick_home_enabled, quick_disarm_enabled, quick_arm_enabled, arm_delay_beep_sound, user_id |

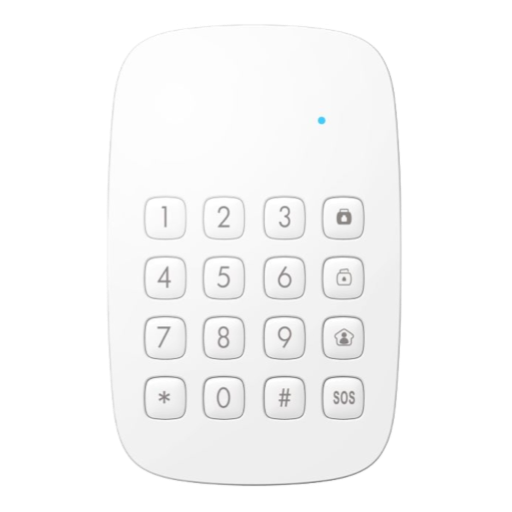

Picture | ![]() |
Exposes
Action (enum)
Triggered action (e.g. a button click). Value can be found in the published state on the action
property. It's not possible to read (/get
) or write (/set
) this value. The possible values are: disarm
, arm_home
, arm_away
, sos
.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Tamper (binary)
Indicates whether the device is tampered. Value can be found in the published state on the tamper
property. It's not possible to read (/get
) or write (/set
) this value. If value equals true
tamper is ON, if false
OFF.
Admin code (text)
Admin code. Value can be found in the published state on the admin_code
property. It's not possible to read (/get
) or write (/set
) this value.
Last added user code (text)
Last Added User code. Value can be found in the published state on the last_added_user_code
property. It's not possible to read (/get
) or write (/set
) this value.
Arm delay time (numeric)
Arm Delay Time. Value can be found in the published state on the arm_delay_time
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"arm_delay_time": NEW_VALUE}
. The minimal value is 0
and the maximum value is 180
.
Beep sound enabled (binary)
Beep Sound Enabled. Value can be found in the published state on the beep_sound_enabled
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"beep_sound_enabled": NEW_VALUE}
. If value equals ON
beep sound enabled is ON, if OFF
OFF.
Quick home enabled (binary)
Quick Home Enabled. Value can be found in the published state on the quick_home_enabled
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"quick_home_enabled": NEW_VALUE}
. If value equals ON
quick home enabled is ON, if OFF
OFF.
Quick disarm enabled (binary)
Quick Disarm Enabled. Value can be found in the published state on the quick_disarm_enabled
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"quick_disarm_enabled": NEW_VALUE}
. If value equals ON
quick disarm enabled is ON, if OFF
OFF.
Quick arm enabled (binary)
Quick Arm Enabled. Value can be found in the published state on the quick_arm_enabled
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"quick_arm_enabled": NEW_VALUE}
. If value equals ON
quick arm enabled is ON, if OFF
OFF.
Arm delay beep sound (binary)
Arm Delay Beep Sound. Value can be found in the published state on the arm_delay_beep_sound
property. It's not possible to read (/get
) this value. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"arm_delay_beep_sound": NEW_VALUE}
. If value equals ON
arm delay beep sound is ON, if OFF
OFF.
User id (text)
Last Used User ID. Value can be found in the published state on the user_id
property. It's not possible to read (/get
) or write (/set
) this value.
