easyiot ZB-RS485
| Model | ZB-RS485 |
| Vendor | easyiot |
| Description | Zigbee to RS485 controller |
| Exposes | last_received_command, send_command, rs485_config |

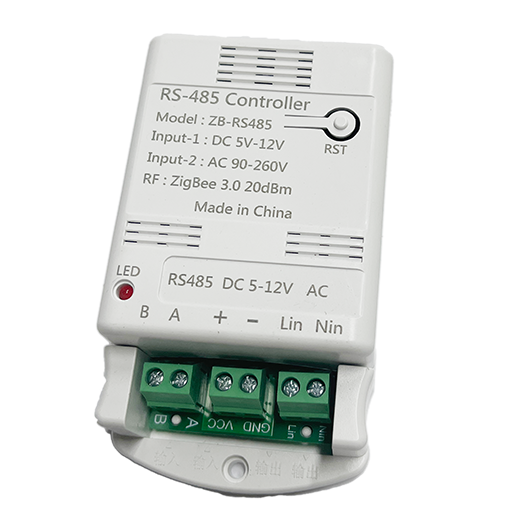

| Picture |  |
OTA updates
This device supports OTA updates, for more information see OTA updates.
Exposes
Last received command (text)
Received data. Value can be found in the published state on the last_received_command property. It's not possible to read (/get) or write (/set) this value.
Send command (text)
Send data. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"send_command": NEW_VALUE}.
Rs485 config (composite)
RS485 serial port configuration. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"rs485_config": {"baud_rate": VALUE, "parity": VALUE, "stop_bits": VALUE}}
baud_rate(enum): Baud rate (bps) allowed values:1200,2400,4800,9600,19200,38400,57600,115200,230400,460800,921600parity(enum): Parity (none / even / odd) allowed values:none,even,oddstop_bits(enum): Stop bits (1 / 1.5 / 2) allowed values:1,1.5,2
