Tuya TS0601_thermostat_fancoil

ModelTS0601_thermostat_fancoil
VendorTuya
DescriptionFan coil unit (FCU) thermostat
Exposeschild_lock, climate (current_heating_setpoint, local_temperature, system_mode, fan_mode, preset, local_temperature_calibration), battery_low, error

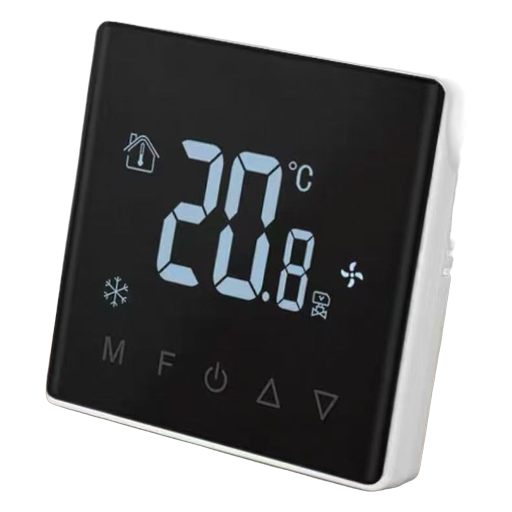

PictureTuya TS0601_thermostat_fancoil

Exposes

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Climate

This climate device supports the following features: current_heating_setpoint, local_temperature, system_mode, fan_mode, preset, local_temperature_calibration.

  • current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 10 and 35. Reading (/get) this attribute is not possible.
  • local_temperature: Current temperature measured on the device (in °C). Reading (/get) this attribute is not possible.
  • system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: heat, cool, dry, fan_only, emergency_heating, auto. Reading (/get) this attribute is not possible.
  • preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: off, on. Reading (/get) this attribute is not possible.
  • local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.The minimal value is -9.9 and the maximum value is 9.9 with a step size of 0.1.

Battery low (binary)

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Error (numeric)

Device error code reported by the thermostat. Value can be found in the published state on the error property. It's not possible to read (/get) or write (/set) this value.
