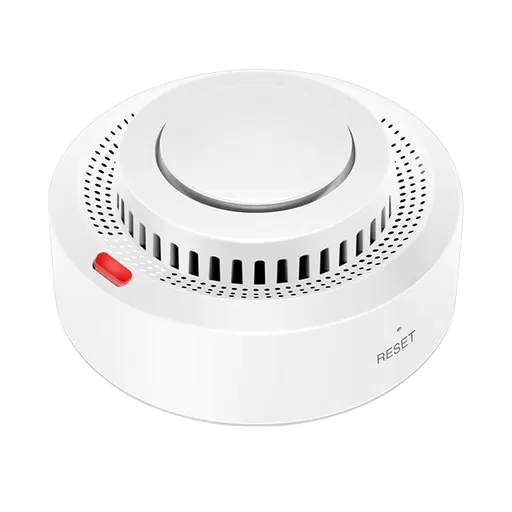

Tuya TS0205_smoke_2

Model	TS0205_smoke_2
Vendor	Tuya
Description	Optical smoke sensor (model YG500A on the PCB)
Exposes	battery, smoke, tamper

Notes

Pairing

Press the reset button on the side for about 5 seconds until the green led starts blinking. Release the button and it should pair - on successful pairing the LED will light up solid green for a few seconds and then turn off.

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Smoke (binary)

Indicates whether the device detected smoke. Value can be found in the published state on the smoke property. It's not possible to read (/get) or write (/set) this value. If value equals true smoke is ON, if false OFF.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.
