SONOFF SNZT-04P

ModelSNZT-04P
VendorSONOFF
DescriptionSmart Door/Window Sensor
Exposescontact, tamper, battery

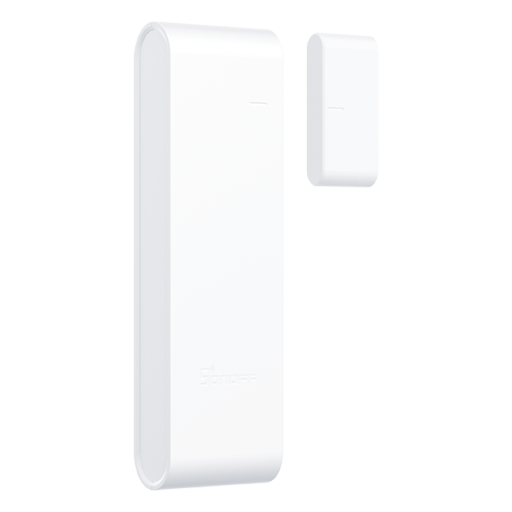

PictureSONOFF SNZT-04P

OTA updates

This device supports OTA updates, for more information see OTA updates.

Exposes

Contact (binary)

Indicates whether the device is opened or closed. Value can be found in the published state on the contact property. It's not possible to read (/get) or write (/set) this value. If value equals false contact is ON, if true OFF.

Tamper (binary)

Tamper-proof status. Value can be found in the published state on the tamper property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"tamper": ""}. It's not possible to write (/set) this value. If value equals true tamper is ON, if false OFF.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
