HEIMAN SMHM-I1 #

Model SMHM-I1
Vendor HEIMAN
Description Smart motion sensor
Supports occupancy

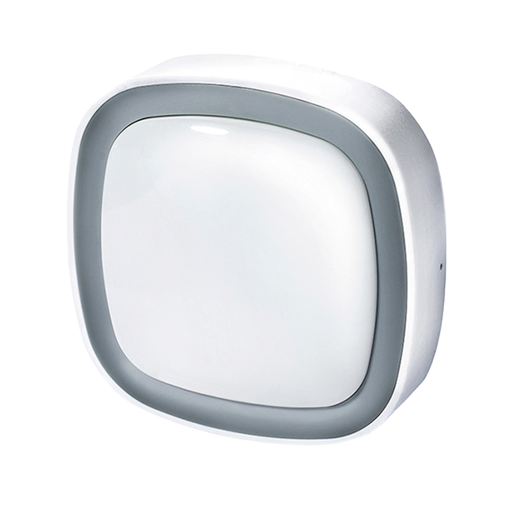

Picture HEIMAN SMHM-I1

Notes #

None

Manual Home Assistant configuration #

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possible with the following configuration:

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_on: true
    payload_off: false
    value_template: "{{ value_json.occupancy }}"
    device_class: "motion"

binary_sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    payload_on: true
    payload_off: false
    value_template: "{{ value_json.battery_low}}"
    device_class: "battery"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    icon: "mdi:signal"
    unit_of_measurement: "lqi"
    value_template: "{{ value_json.linkquality }}"
