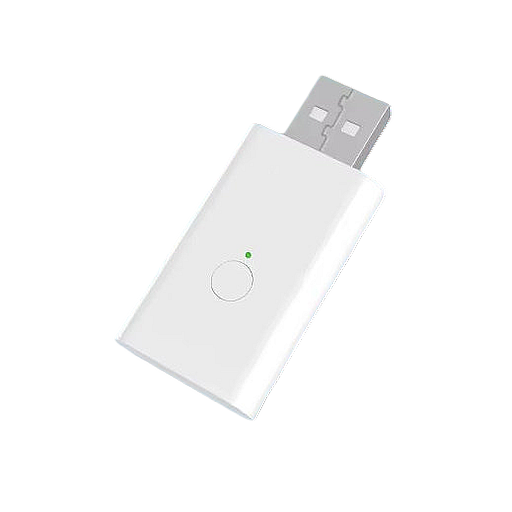

Slacky-DIY Router-ZG-807Z-SlD


Model	Router-ZG-807Z-SlD
Vendor	Slacky-DIY
Description	Tuya router with custom firmware
Exposes	battery, voltage, battery_low, uptime_time, tx_power, switch_actions

Original project description

OTA updates

This device supports OTA updates, for more information see OTA updates.

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Reported battery voltage in millivolts. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.

Battery low (binary)

Empty battery indicator. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Uptime time (numeric)

Uptime of device. Value can be found in the published state on the uptime_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"uptime_time": ""}. It's not possible to write (/set) this value. The unit of this value is sec.

Tx power (enum)

Rf power config. Value can be found in the published state on the tx_power property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"tx_power": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"tx_power": NEW_VALUE}. The possible values are: 0 dBm, 5 dBm, 10 dBm.

Switch actions (enum)

Actions switch. Value can be found in the published state on the switch_actions property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_actions": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_actions": NEW_VALUE}. The possible values are: on_off, off_on, toggle.
