Xiaomi QBKG21LM #

Model QBKG21LM
Vendor Xiaomi
Description Aqara D1 single gang smart wall switch (no neutral wire)
Exposes switch (state), action, operation_mode, linkquality

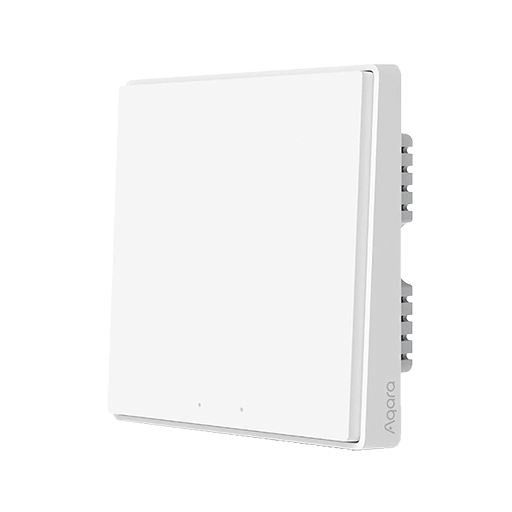

Picture Xiaomi QBKG21LM

Notes #

Deprecated click event #

By default this device exposes a deprecated click event. It’s recommended to use the action event instead.

To disable the click event, set legacy: false for this device in configuration.yaml. Example:

devices:
  '0x12345678':
    friendly_name: my_device
    legacy: false

Device type specific configuration #

How to use device type specific configuration

Exposes #

Switch #

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

Action (enum) #

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It’s not possible to read (/get) or write (/set) this value. The possible values are: single, hold, release.

Operation_mode (enum) #

Decoupled mode. Value can be found in the published state on the operation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode": NEW_VALUE}. The possible values are: control_relay, decoupled.

Linkquality (numeric) #

Link quality (signal strength). Value can be found in the published state on the linkquality property. It’s not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
