Zigbee2MQTT

EGLO 99099

Model99099
VendorEGLO
Description3 groups remote controller
Exposesaction, linkquality

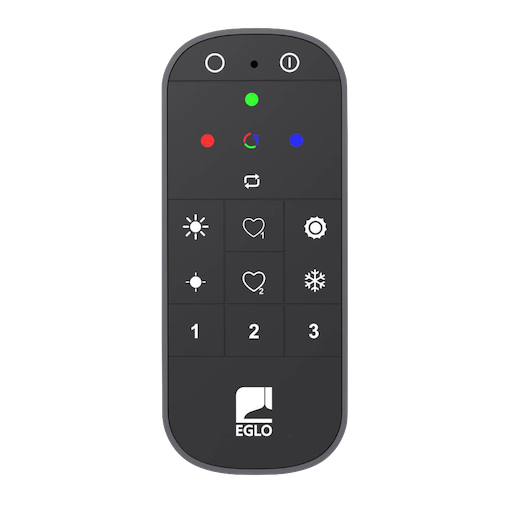

PictureEGLO 99099

Options

How to use device type specific configuration

  • simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:
simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on, off, red, refresh, refresh_colored, blue, yellow, green, brightness_step_up, brightness_step_down, brightness_move_up, brightness_move_down, brightness_stop, recall_1, color_temperature_step_up, color_temperature_step_down.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
