Yale YRD426NRSC

Model YRD426NRSC
Vendor Yale
Description Assure lock
Supports lock/unlock, battery

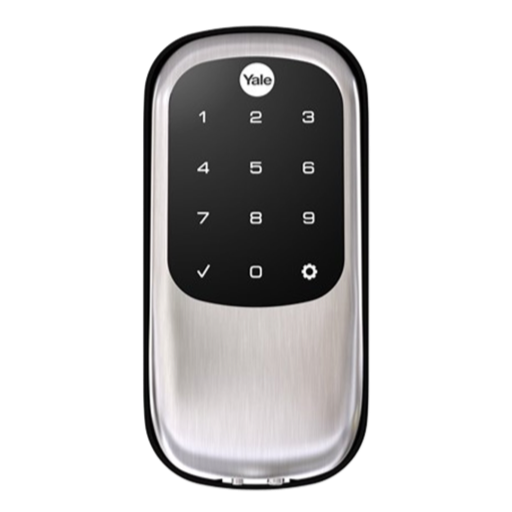

Picture ../images/devices/YRD426NRSC.jpg

Notes

None

Manual Home Assistant configuration

Although Home Assistant integration through MQTT discovery is preferred, manual integration is possbile with the following configuration:

YRD426NRSC

lock:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    command_topic: "zigbee2mqtt/<FRIENDLY_NAME>/set"
    value_template: "{{ value_json.state }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "%"
    device_class: "battery"
    value_template: "{{ value_json.battery }}"

sensor:
  - platform: "mqtt"
    state_topic: "zigbee2mqtt/<FRIENDLY_NAME>"
    availability_topic: "zigbee2mqtt/bridge/state"
    unit_of_measurement: "-"
    value_template: "{{ value_json.linkquality }}"
